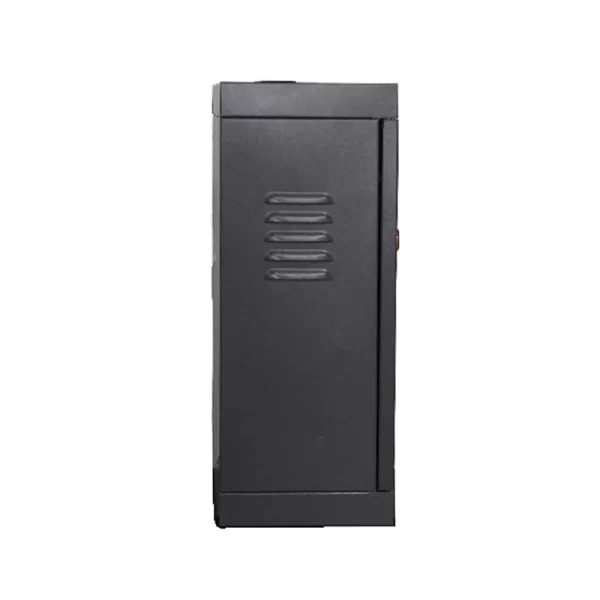

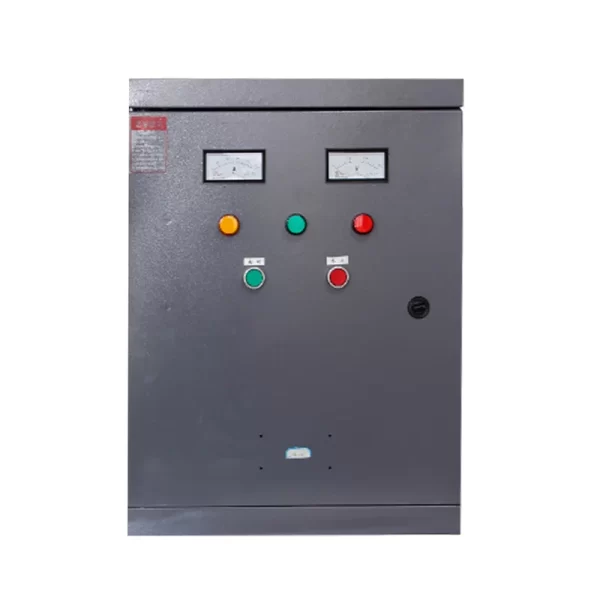

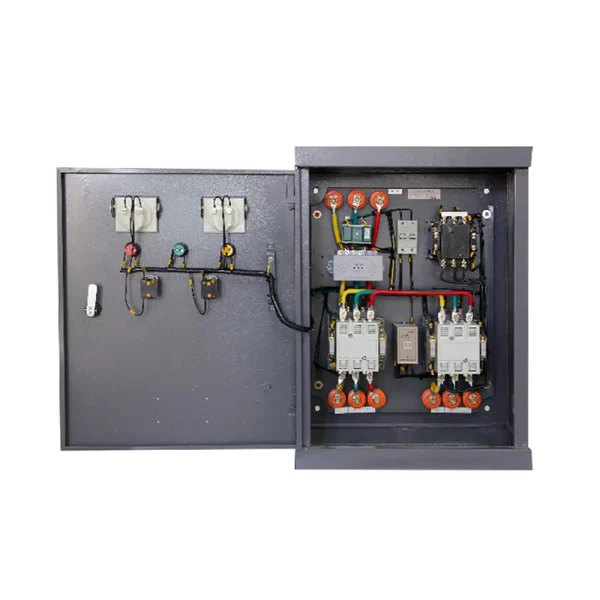

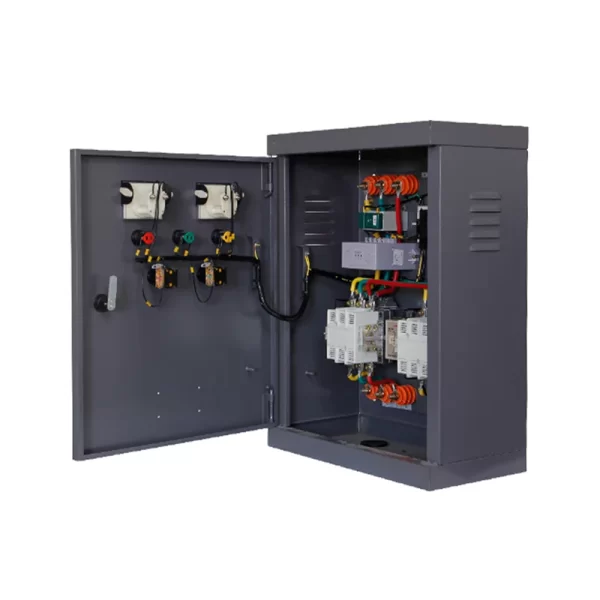

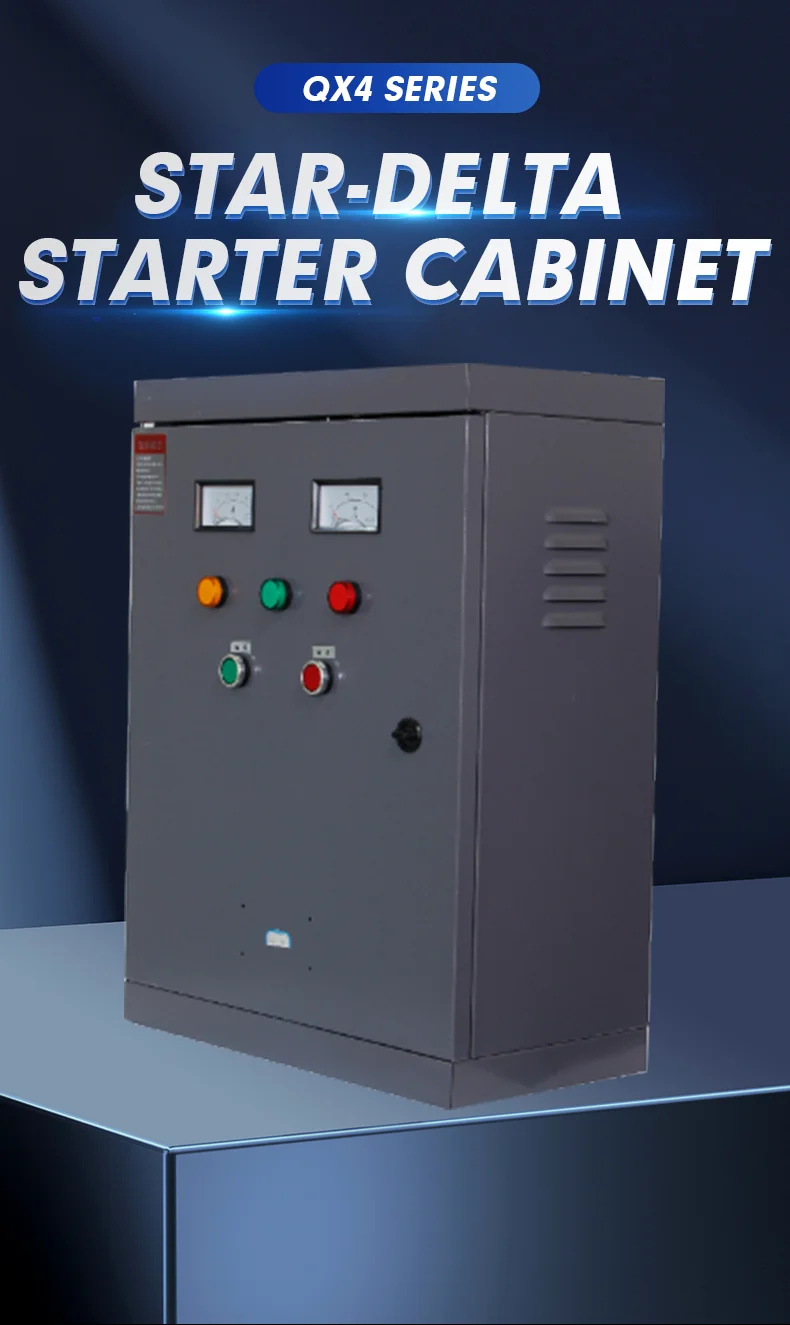

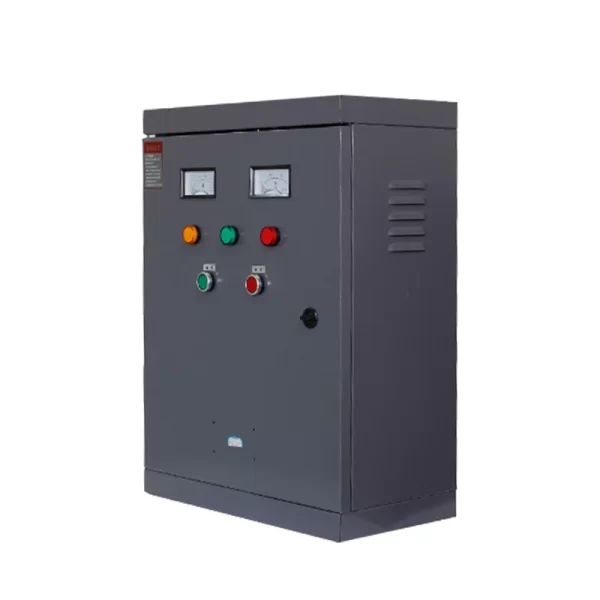

LNC-QX4 Star-delta starter cabinet

LNC-QX4 series star-delta starter cabinets are suitable for starting three-phase squirrel-cage induction motors with AC 380V, 50Hz and power below 135kW. It is available in wall-mounted, floor-standing, indoor and outdoor types. This product is mostly used as supporting equipment for air compressor startup. Our company has long supplied supporting products to many air compressor manufacturers nationwide. Comprehensive improvements and innovations have been made to the original product based on feedback from numerous users.

Overview

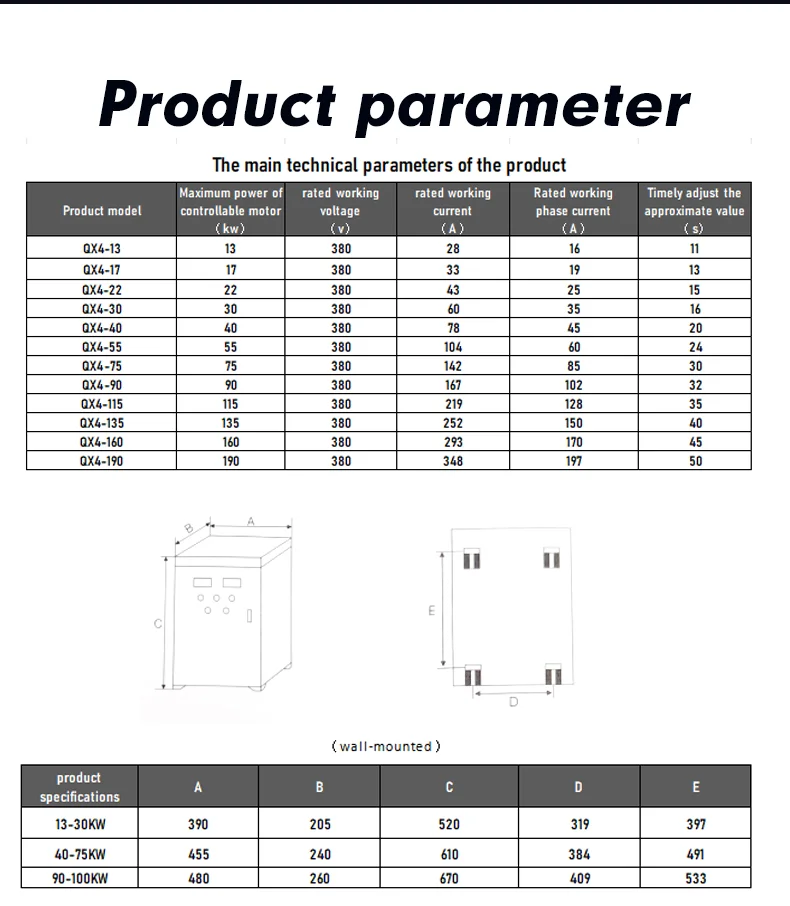

Product parameter

Product model	Maximum power of controllable motor（kw）	rated working voltage（v）	rated working current（A）	Rated working phase current（A）	Timely adjust the approximate value（s）
QX4-13	13	380	28	16	11
QX4-17	17	380	33	19	13
QX4-22	22	380	43	25	15
QX4-30	30	380	60	35	16
QX4-40	40	380	78	45	20
QX4-55	55	380	104	60	24
QX4-75	75	380	142	85	30
QX4-90	90	380	167	102	32
QX4-115	115	380	219	128	35
QX4-135	135	380	252	150	40
QX4-160	160	380	293	170	45
QX4-190	190	380	348	197	50

(wall-mounted)

product specifications	A	B	C	D	E
13-30KW	390	205	520	319	397
40-75KW	455	240	610	384	491
90-100KW	480	260	670	409	533

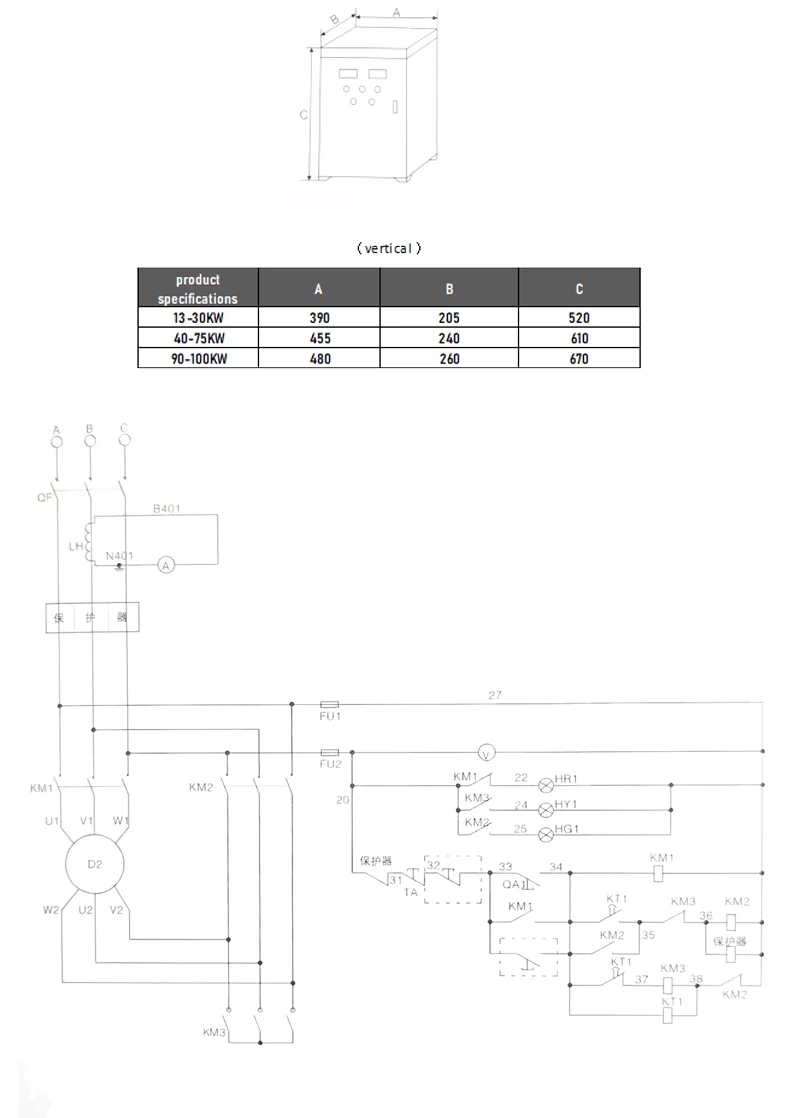

product specifications	A	B	C
13-30KW	390	205	520
40-75KW	455	240	610
90-100KW	480	260	670
