Overview
The 900 Series on-line soft starter features advanced electronic circuitry providing optimal control and protection. Equipped with an RS485 communication interface, it enables full microcomputer-based remote control and monitoring. It effectively reduces motor starting current, lowers power distribution capacity requirements, and eliminates the need for grid capacity expansion investments. The soft stop function effectively solves the problem of shutdown surges in inertial systems.
Widely used in textiles, metallurgy, petroleum, chemicals, water treatment, transportation, pharmaceuticals, food processing, mining and mechanical equipment.

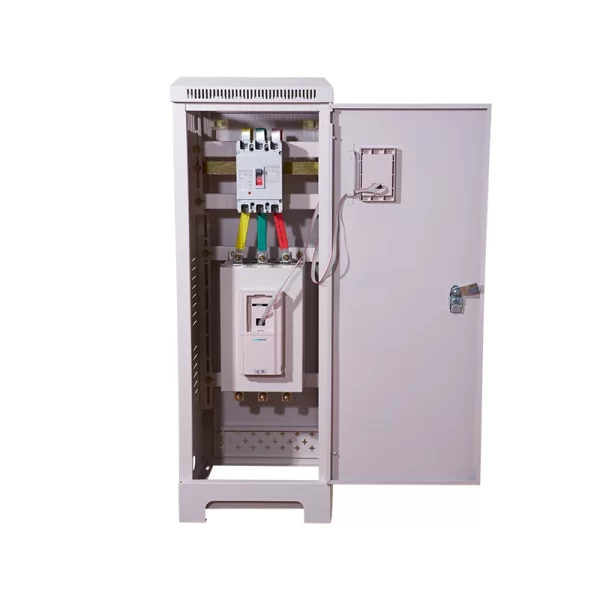

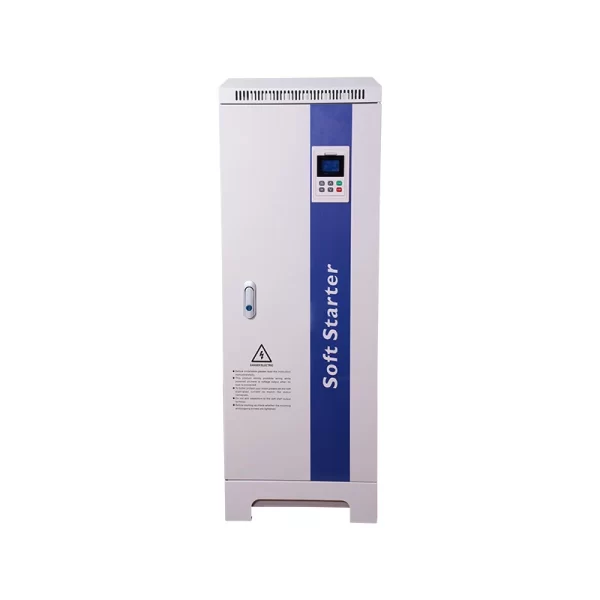

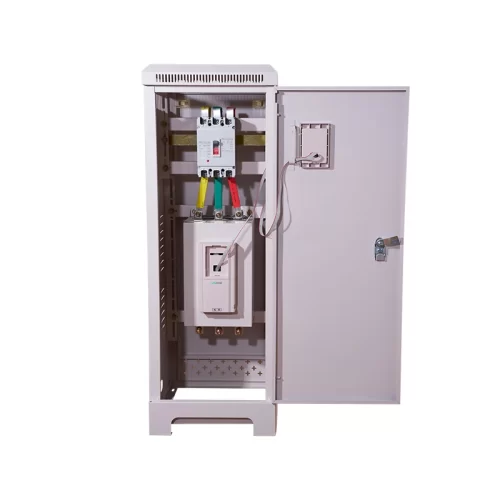

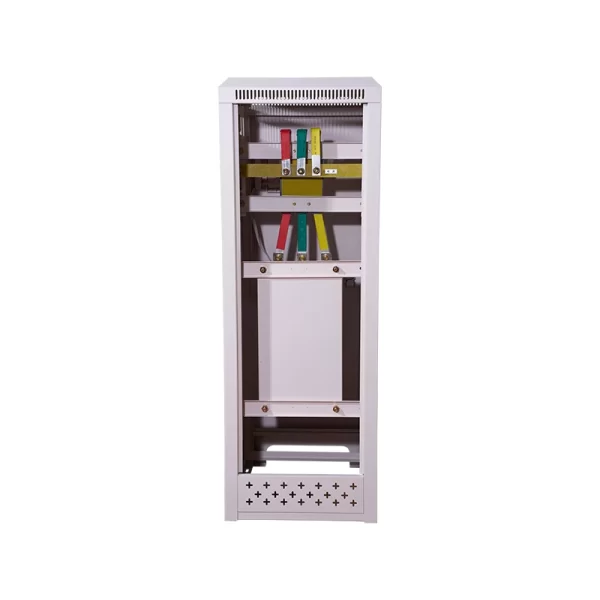

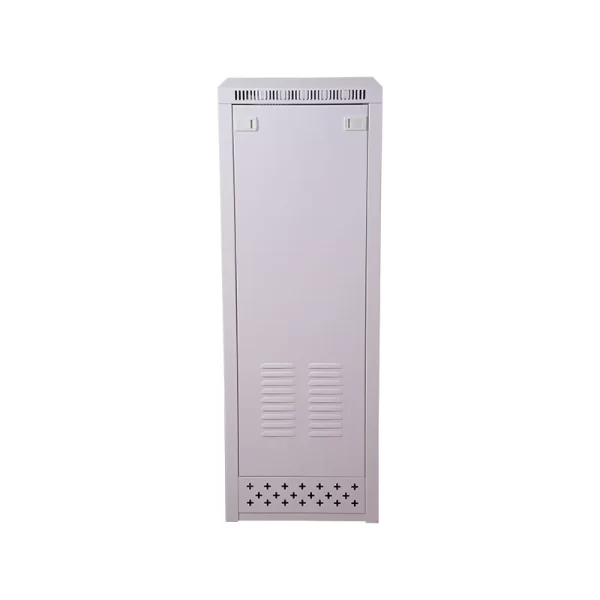

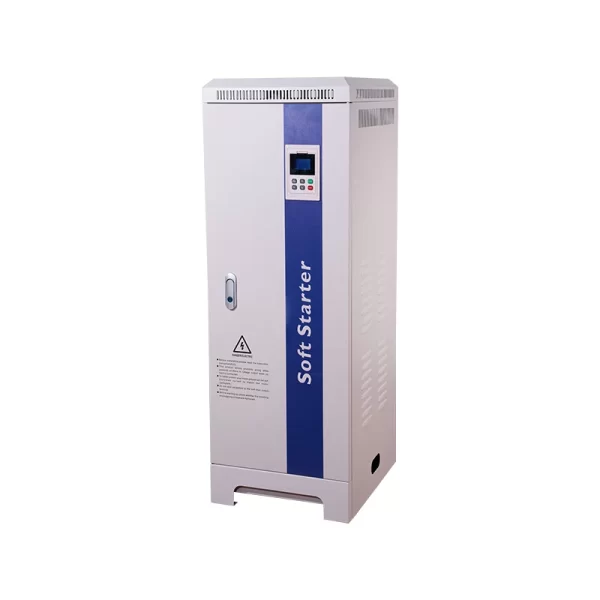

The SZ900-90-115kW medium-power online soft starter cabinet is designed for industrial motors ranging from 90 to 115kW. It features upgraded cabinet capacity and a reinforced heat dissipation structure, enabling it to handle continuous heavy-load starting conditions.
The online architecture ensures the thyristor remains online after startup, eliminating the risk of bypass contactor failure. It supports various startup curves, including current-limiting and voltage ramping, and allows for customized startup duration based on the inertial load of the fan/pump. A complete motor protection system collects operating current and voltage in real time, automatically recording faults for easy on-site troubleshooting.
Supports RS485 communication and can be connected to automated control systems. It is widely used in medium-sized water pumps, induced draft fans, and belt conveyor equipment to mitigate mechanical shock during startup, reduce water hammer in pipelines, and minimize impact on the plant’s power distribution system.
Product features
▲ Wide-range linear data sampling with no dead zones for higher accuracy
▲ Configurable fault enable/disable for easy debugging
▲ Automatic time extension and boost during soft start based on load, enhancing adaptability
▲ Comprehensive monitoring data including current, voltage, phase sequence angle, frequency and cumulative runtime
▲ High-precision 4-20mA current output with 0.5% linear accuracy
▲ 12 protection functions including inverse time overload protection to prevent motor overheating
▲ 4-line LED display with RS485 interface; optional Modbus RTU for full remote monitoring and control
Product Advantages
1. Compact & User-Friendly Design
2. Smooth Startup & Long Equipment Lifespan
3. Wide Power Compatibility & Strong Flexibility
4. Intelligent Remote Integration & Efficient Management
