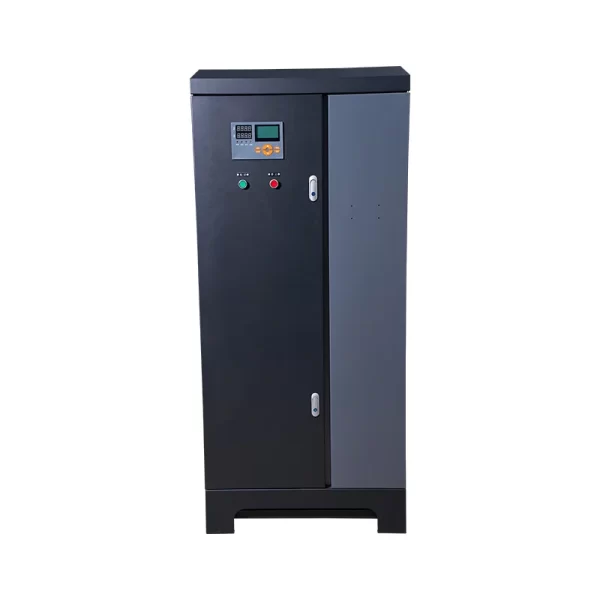

Product Overview

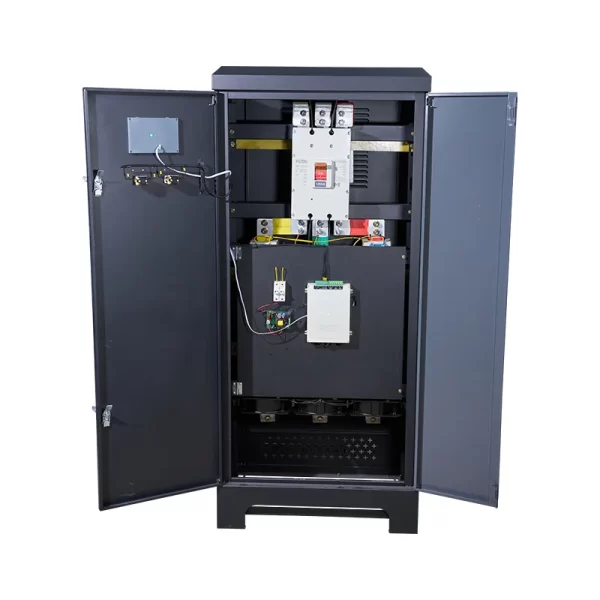

LR800‑320‑600KW split‑layout online intelligent soft starter cabinet is designed for high‑power heavy‑load motor working scenarios. Combining modern motor control theory, multi‑dimensional motor protection and mature processing craft, this product cancels external contactor configuration, and is an ideal upgrade alternative for star‑delta and auto‑transformer step‑down starting equipment. Optimized on the base of general soft starters, it realizes enhanced performance and high reliability for large‑capacity motor drive occasions.
It greatly restricts motor starting inrush current, decreases power distribution capacity requirement and prevents investment for power grid expansion. It relieves mechanical starting stress of large‑power motors and connected loads, extending the service life of motors and mechanical equipment. The soft‑stop function effectively handles inertial loads. Three dedicated starting modes cope with harsh and complex heavy‑load startup conditions. Complete protection system prevents equipment damage from various electrical faults. Intelligent networking interface supports data communication, satisfying higher requirements of modern electric automation system for large motor control.
Main Features

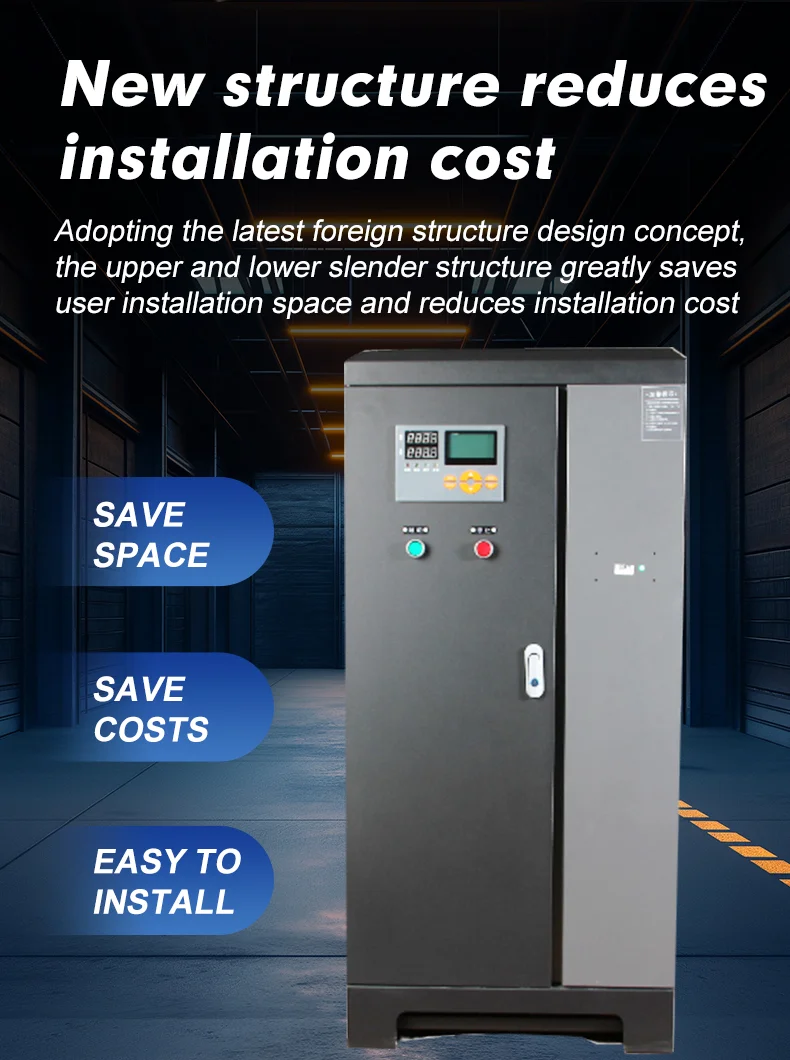

- Optimized humanized design: Nice‑looking cabinet appearance with rational structural layout, complete functions with easy operation, firm compact mechanical structure and premium industrial artistic design.

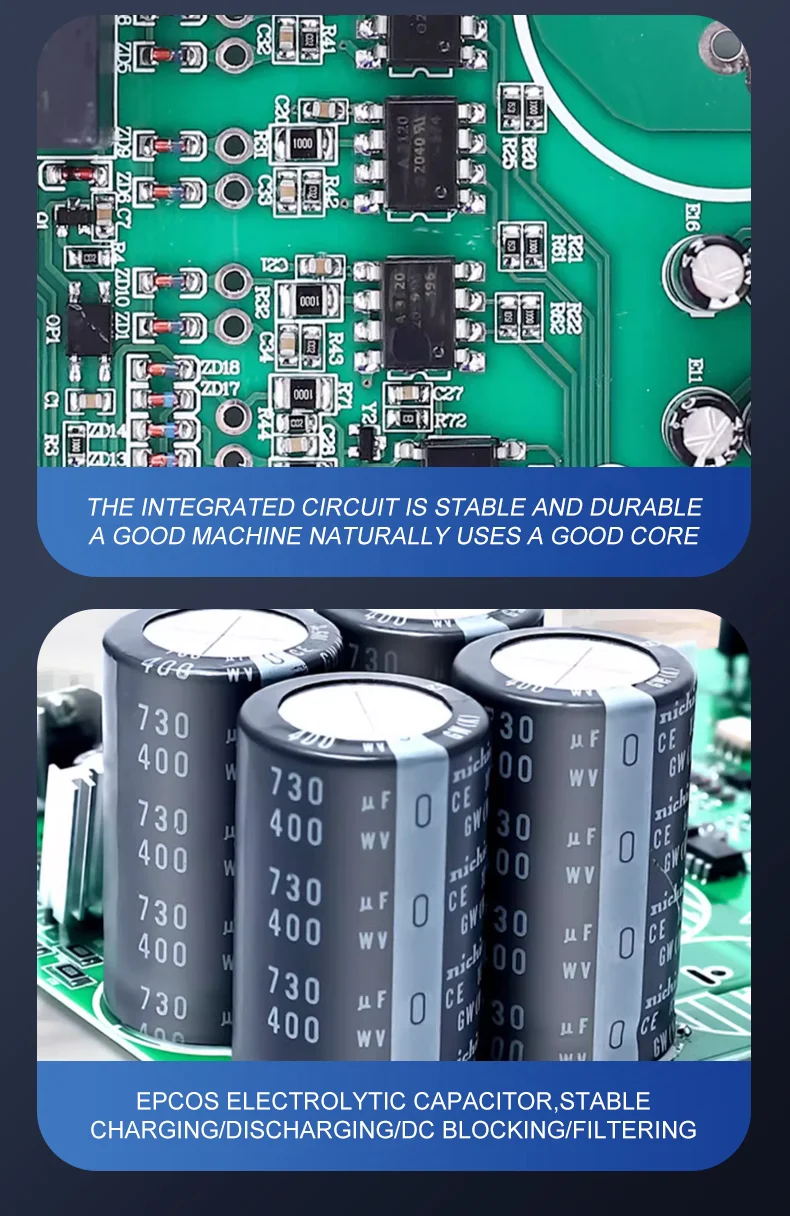

- High‑standard quality guarantee: Adopt computer simulation design, SMT patch production technology and excellent electromagnetic compatibility design. Every finished cabinet passes whole‑machine high‑temperature aging and vibration test before delivery.

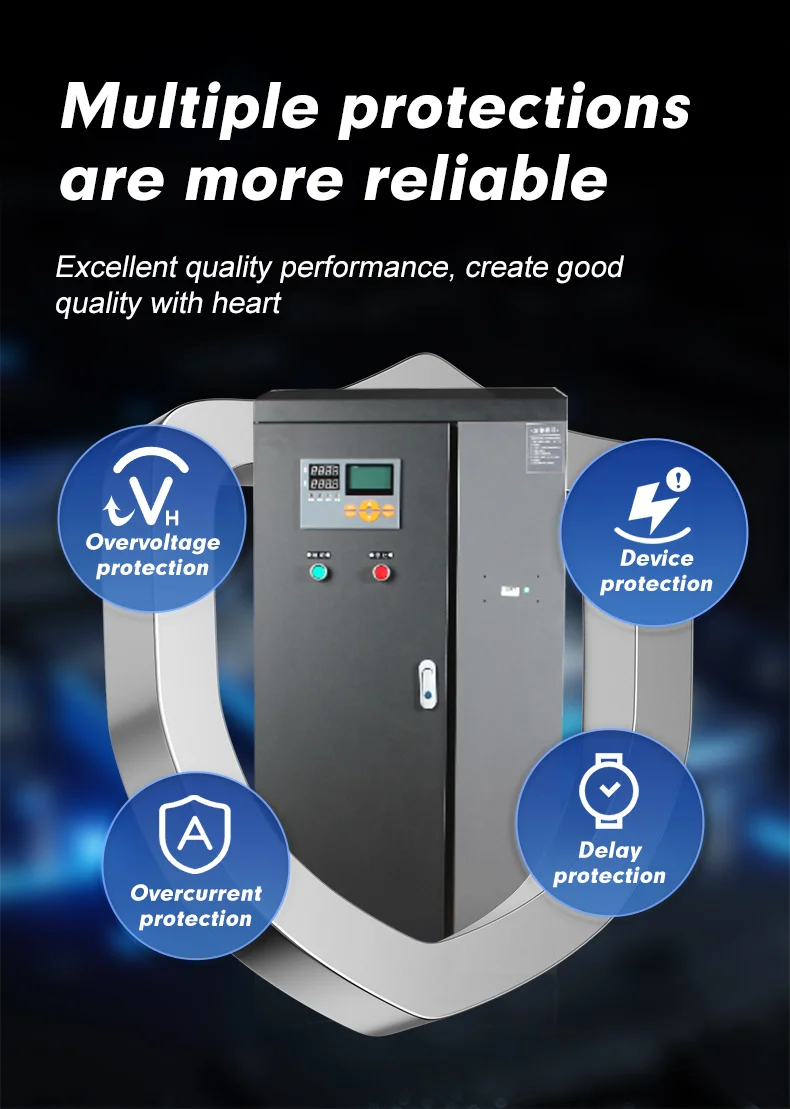

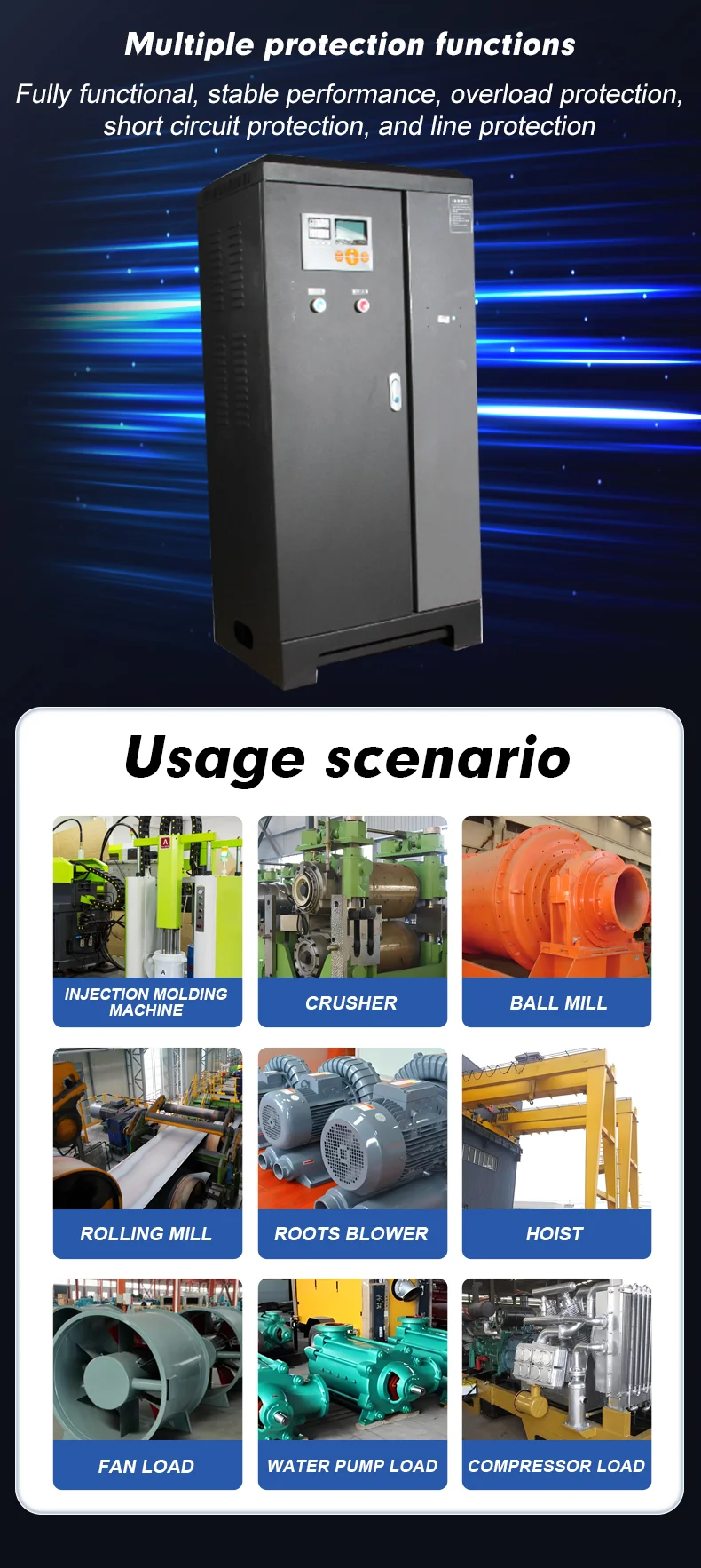

- Full‑set 11‑category protection functions: Including loss‑of‑voltage, under‑voltage, over‑voltage; device over‑temperature, overlong starting duration; input/output phase loss, three‑phase unbalance; starting over‑current, running overload and load short‑circuit protection.
- Independent intellectual property: Patented cabinet appearance design, proprietary software copyright, exclusive motor start‑and‑protection technology, dedicated testing and debugging devices and technical procedures.
- Thoughtful after‑sales service: Provide customized complete supporting design scheme, timely usage consultation, continuous product performance improvement based on user practical feedback.
Technical Parameters
| Item | Specification |
|---|---|

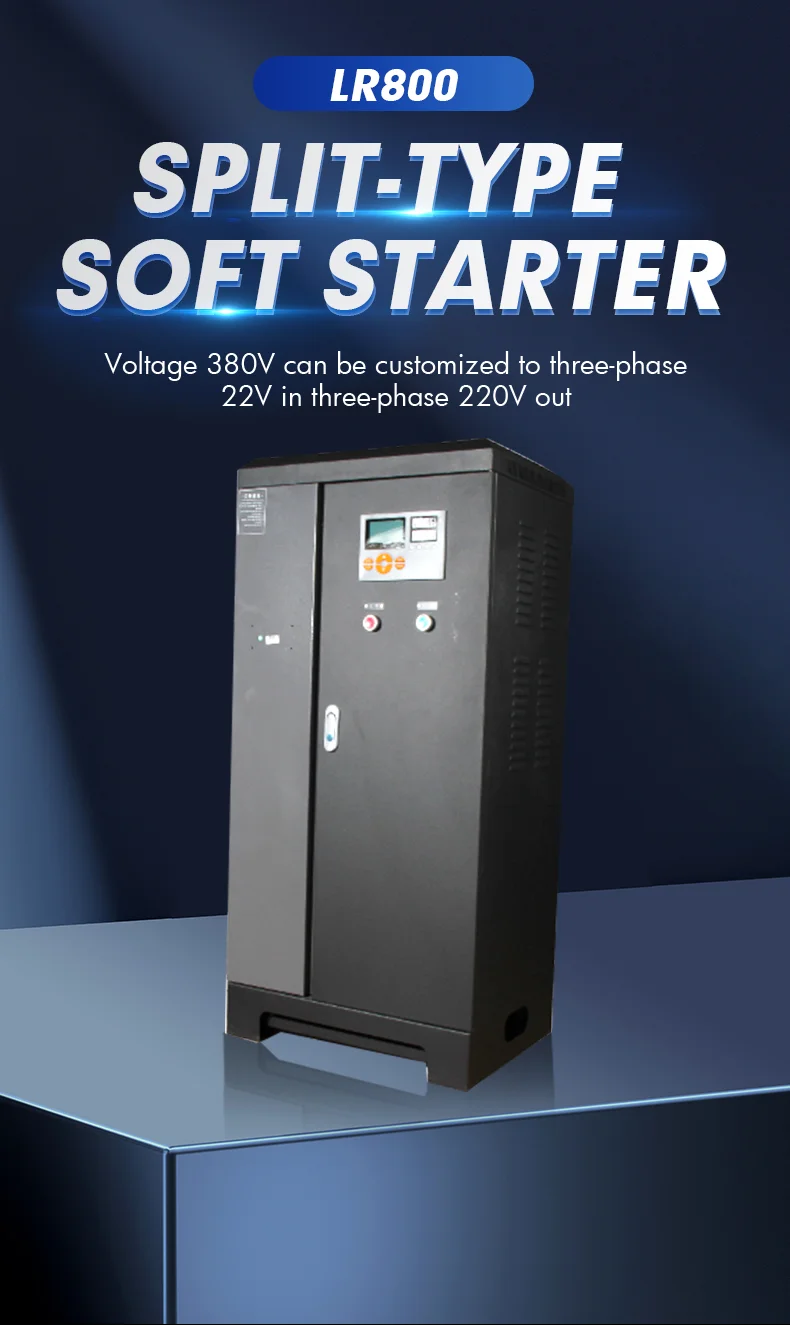

| Applicable Voltage | 380V / 660V /1140V |
| Rated Power Range | 320‑600kW |

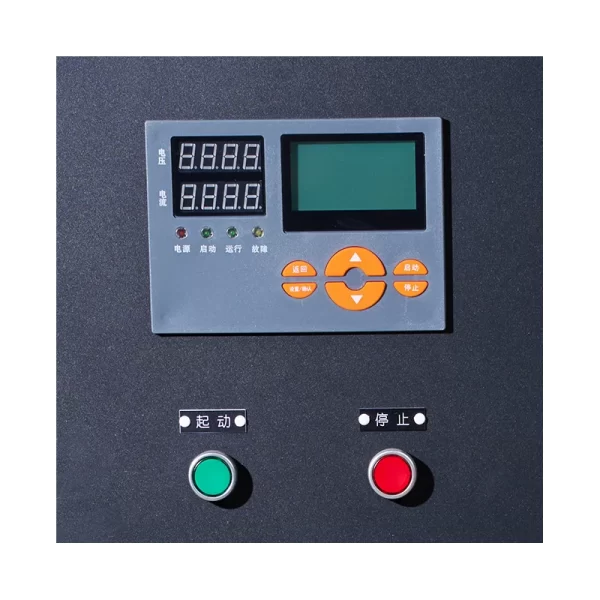

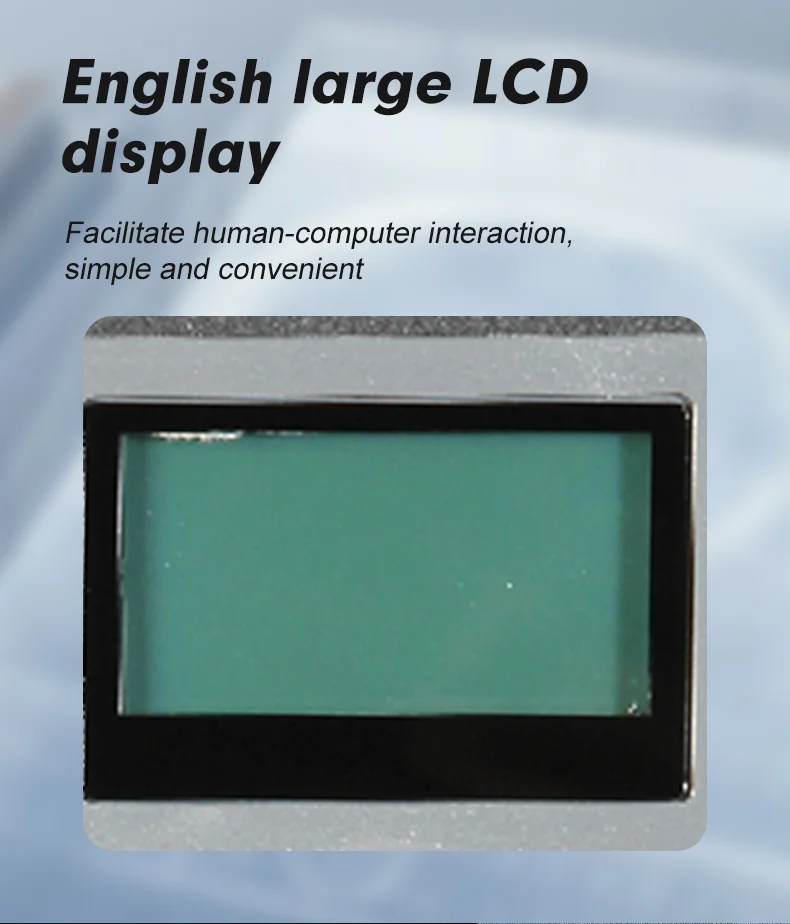

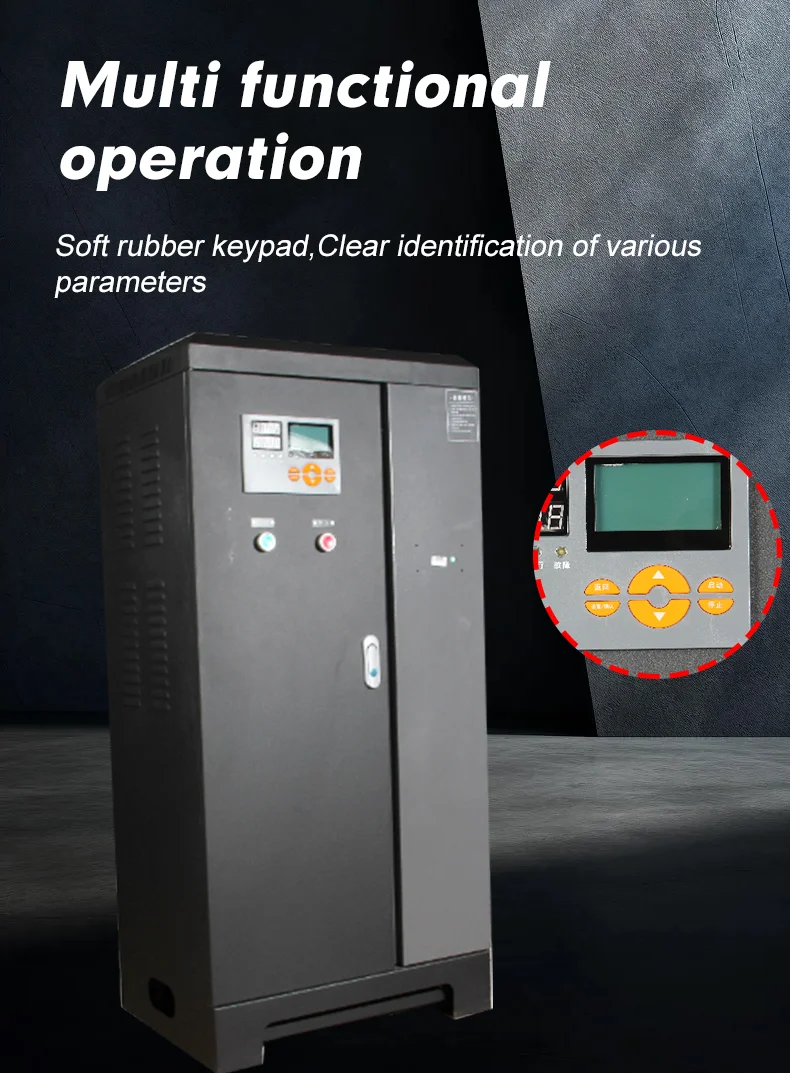

| Display Mode | Chinese LCD / Digital display |
| Terminals | 12 or15 terminals for input & output |
| Overload Capacity | 100%‑150%, sustain for 30S |

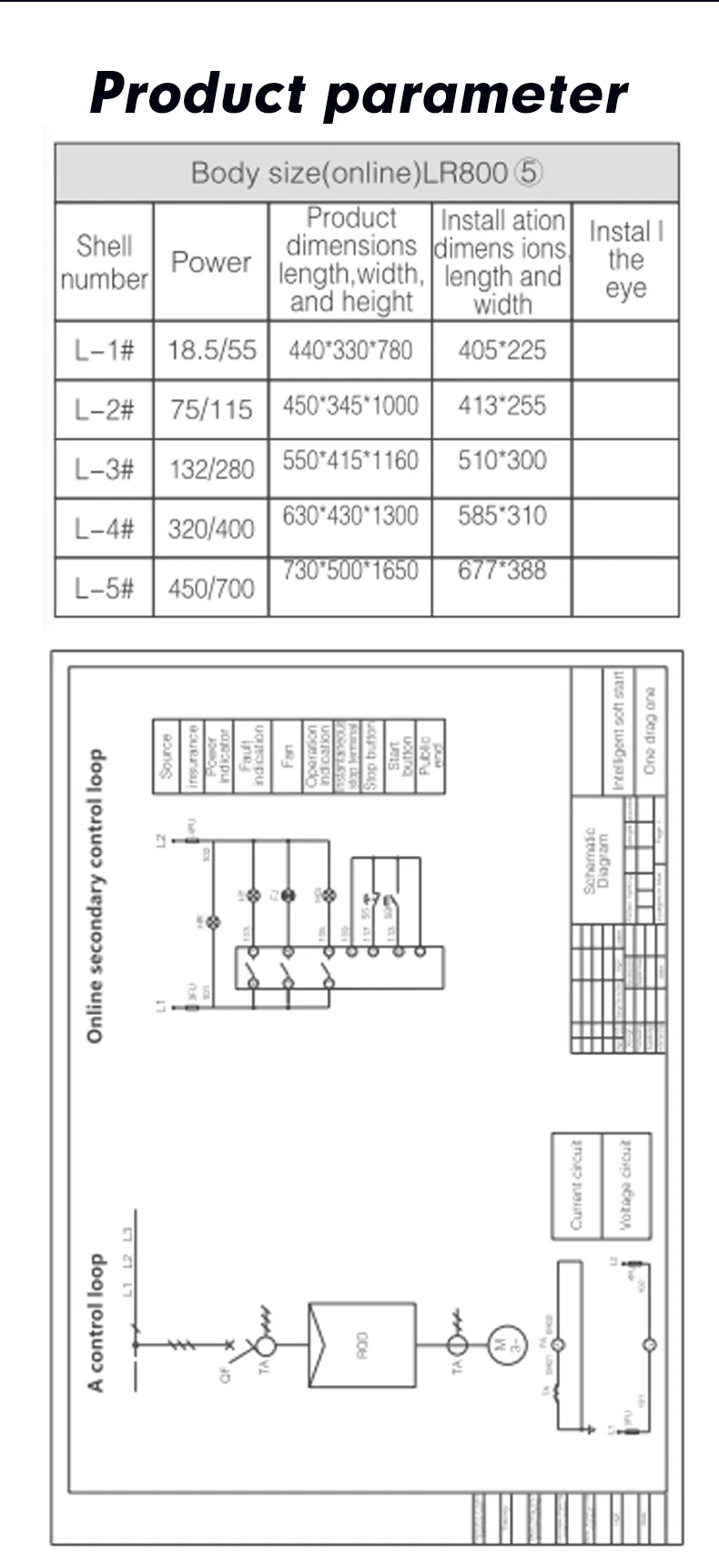

| Shell No. | L‑4# / L‑5# |
| Product Dimension(L×W×H) | L‑4#:630×430×1300mm；L‑5#:730×500×1650mm |
| Mounting Dimension(L×W) | L‑4#:585×310mm；L‑5#:677×388mm |
