Product Overview

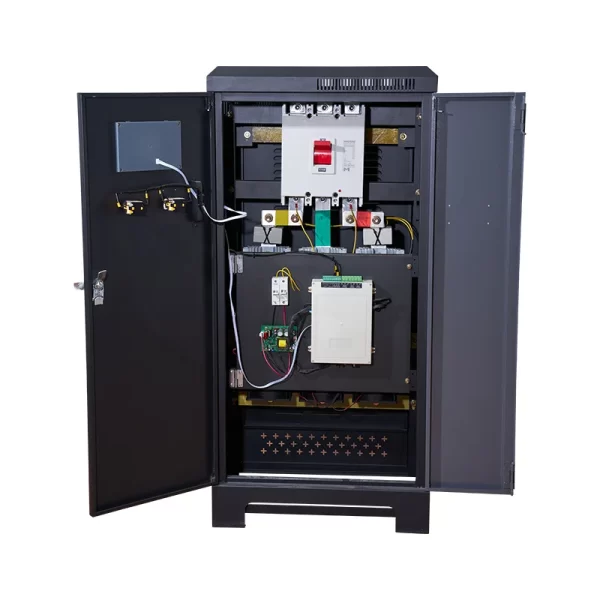

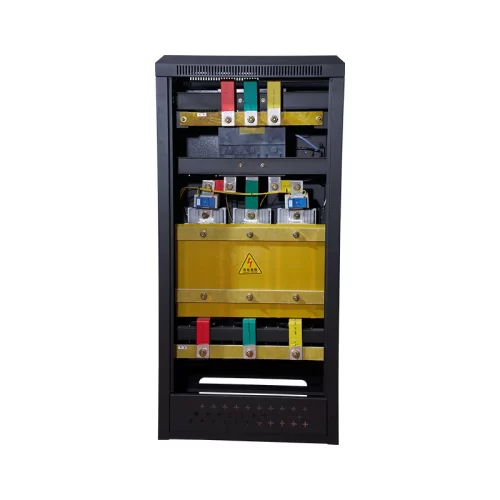

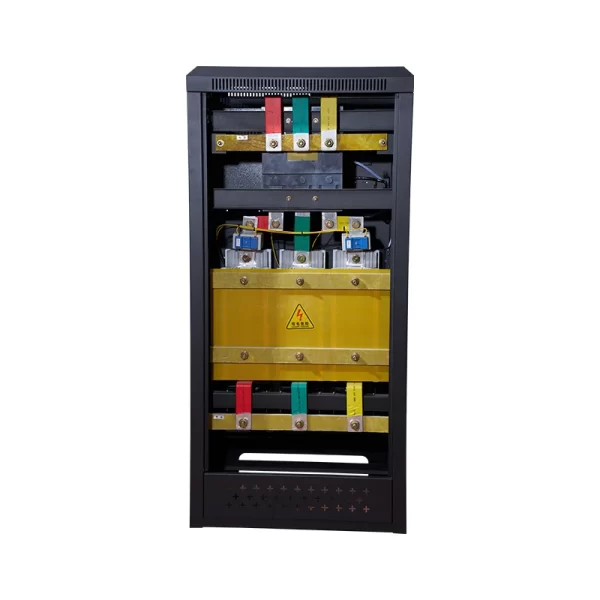

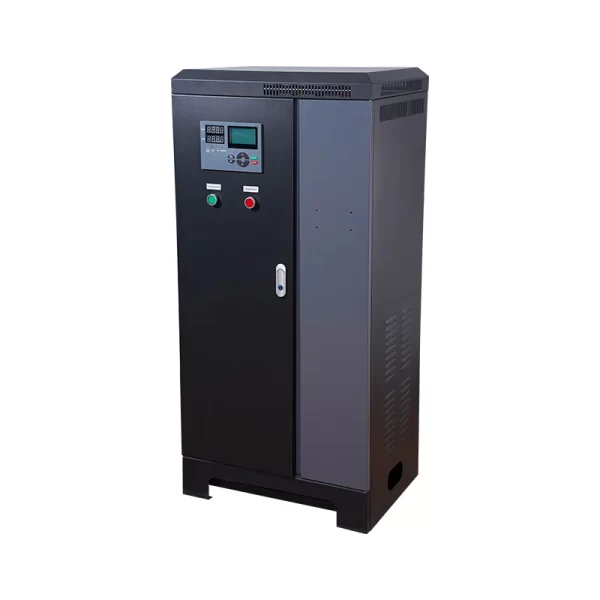

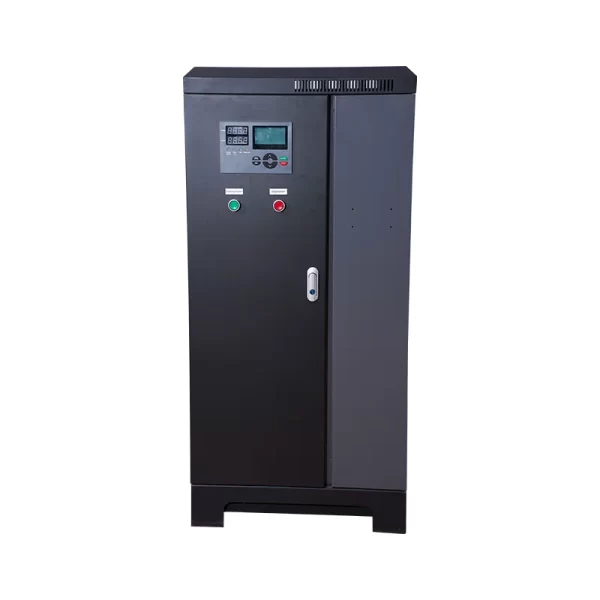

LR800‑90‑280KW split‑type online intelligent soft starter cabinet is a high‑power intelligent motor control product integrating advanced motor control, protection and processing technologies. No external contactor is needed, replacing conventional star‑delta and auto‑coupling step‑down starting devices. Built upon ordinary soft starter upgrades, it ensures outstanding performance and high operational stability for medium‑large motors.
It suppresses motor starting impulse current, lowers power system capacity demand and saves grid upgrading costs. It reduces mechanical impact stress on motors and driven loads to prolong equipment service cycle. Soft shutdown function avoids water hammer and inertial‑related failure risks. Three configurable starting modes adapt to heavy‑duty and complicated load conditions. Full‑range protection safeguards motor and production safety. Intelligent networking function realizes remote monitoring, matching the development trend of power system automation.
Main Features
- Human‑centered design: Harmonized elegant outlook and reasonable layout, full‑featured with easy operation, solid compact cabinet structure and lean industrial appearance.
- Strict quality assurance: Computer simulation aided design, SMT patch manufacturing process, superior electromagnetic compatibility. Complete machine high‑temperature aging and vibration screening before shipment.
- Comprehensive 11‑way protection: Cover loss‑of‑voltage / under‑voltage / over‑voltage, device overheat, overlong starting time, input & output phase loss, three‑phase current unbalance, start over‑current, running overload and load short‑circuit protection.
- Independent intellectual property rights: Cabinet appearance patent, self‑developed software copyright, exclusive motor starting‑protection algorithm, specialized testing and commissioning equipment & process.
- Complete after‑sales support: Customized system solution supply, prompt technical advisory service, continuous performance optimization according to practical user feedback.
Technical Parameters
| Item | Specification |
|---|---|
| Applicable Voltage | 380V / 660V /1140V |
| Rated Power Range | 90‑280kW |

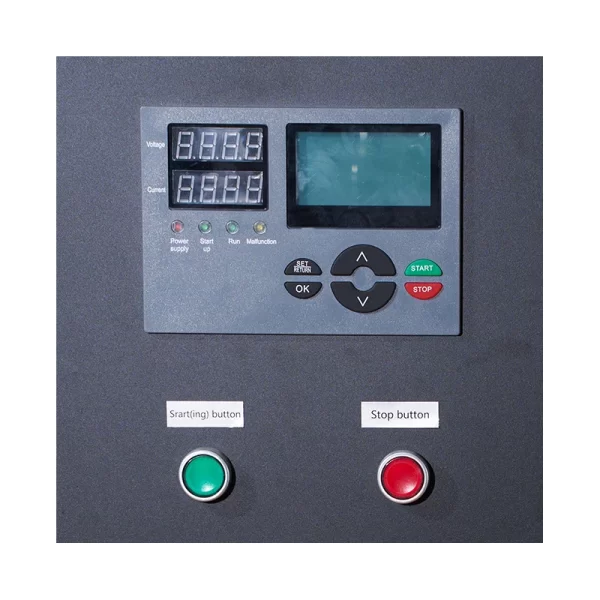

| Display Mode | Chinese LCD / Digital display |
| Terminals | 12 or15 terminals for input & output |
| Overload Capacity | 100%‑150%, sustain for 30S |
| Shell No. | L‑2# / L‑3# |
| Product Dimension(L×W×H) | L‑2#:450×345×1000mm；L‑3#:550×415×1160mm |
| Mounting Dimension(L×W) | L‑2#:413×255mm；L‑3#:510×300mm |
