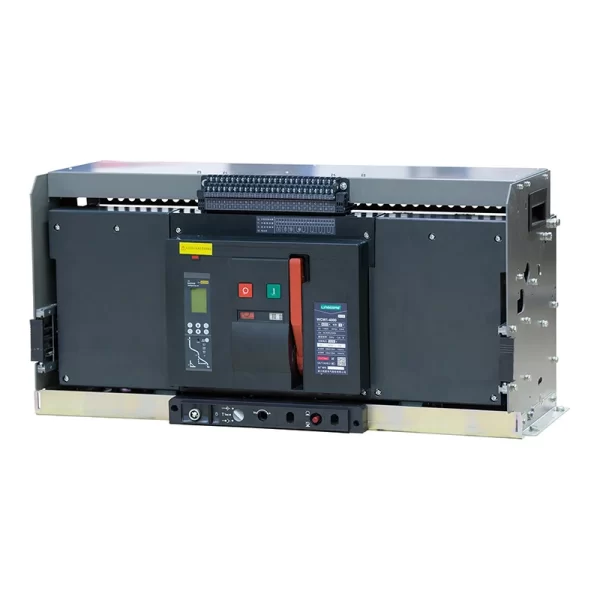

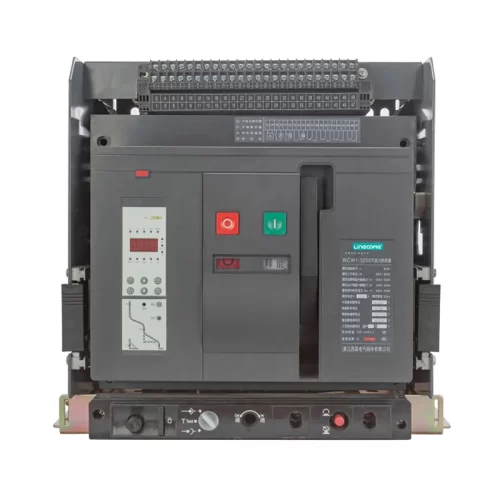

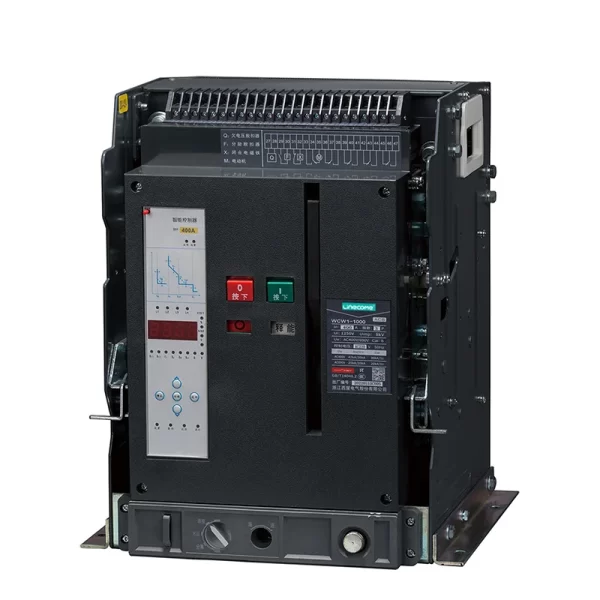

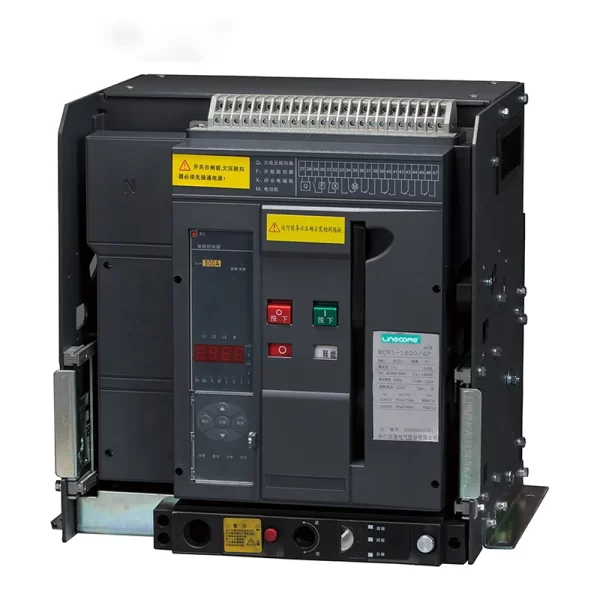

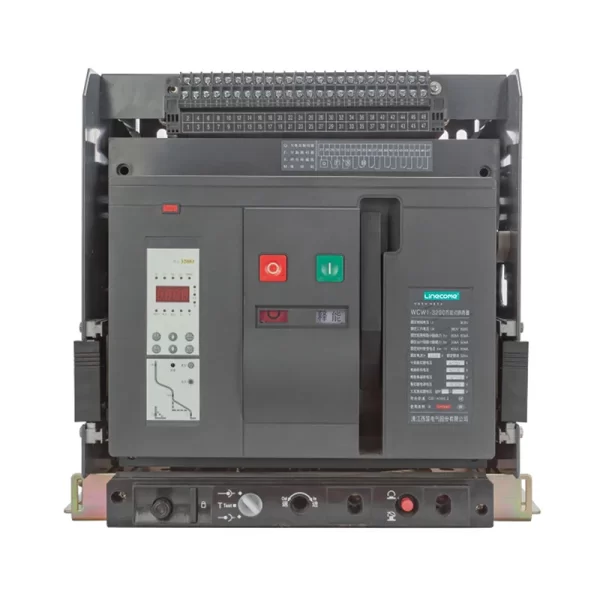

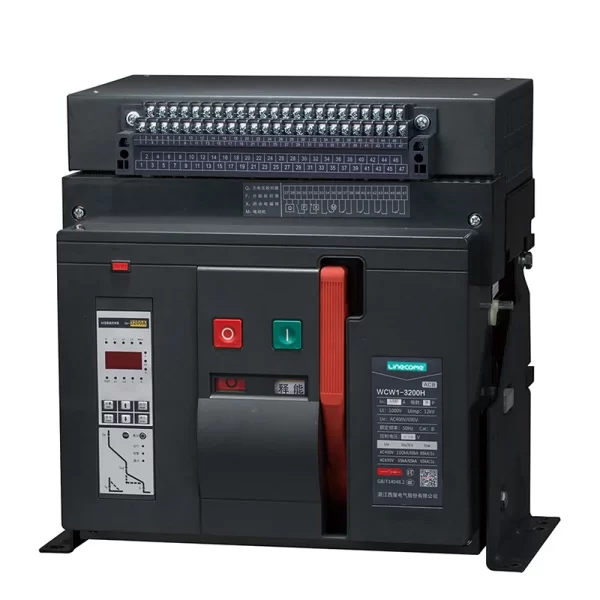

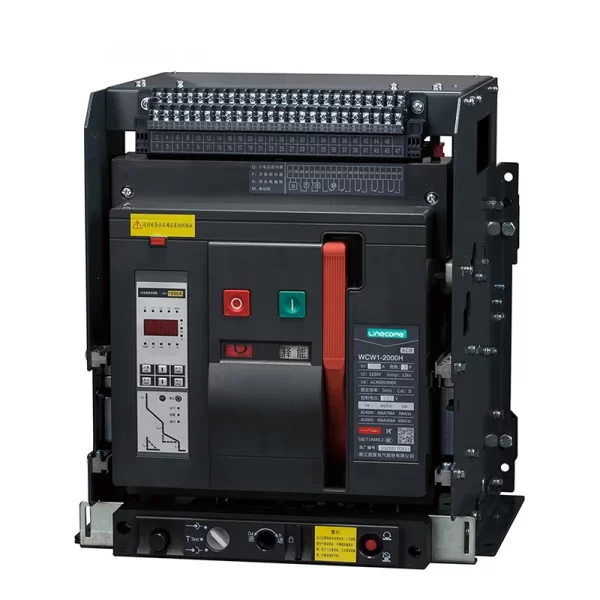

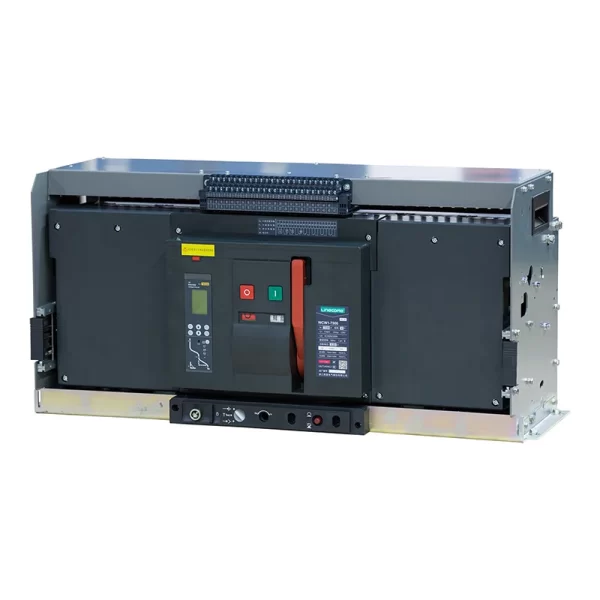

WCW1 Intelligent Universal Air Circuit Breaker

Overview

WCW1 series intelligent universal low-voltage circuit breakers are suitable for distribution networks with AC 50Hz, rated voltage AC400V/690V, and rated current 200A ~ 6300A. They are used to distribute electric energy and protect lines and power equipment from overload, undervoltage, short circuit, single-phase grounding and other faults. The circuit breaker has intelligent protection functions and precise selective protection, which can improve power supply reliability and avoid unnecessary power outages. At the same time, it has an open communication interface and can perform “four remote controls” to meet the requirements of the control center and automation system. Compliant Standards:IEC60947-2

Operating Conditions

▲ Temperature: The upper limit value shall not exceed +40°C, the lower limit value shall not be lower than -5℃, and the average value of 24h shall not exceed +35℃; Note: The user shall consult with our company for the working conditions with the upper limit value exceeding +40℃ or the lower limit value lower than -10℃ or -25℃;

▲ Altitude: ≤2000m;

▲ Air conditions: The relative humidity of the atmosphere shall not exceed 50% when the ambient air temperature is +40℃. The relative humidity can be effectively high at lower temperatures. The average maximum relative humidity of the wettest month is 90%, and the average minimum temperature of the month is +25℃. Condensation on the surface of the product due to temperature changes shall be taken into account.

▲ Protection level: IP30

▲ Use category: Class B

▲ Installation conditions: The vertical inclination of the circuit breaker shall not exceed 5° (the inclination of the mining circuit breaker shall not exceed 15°).
