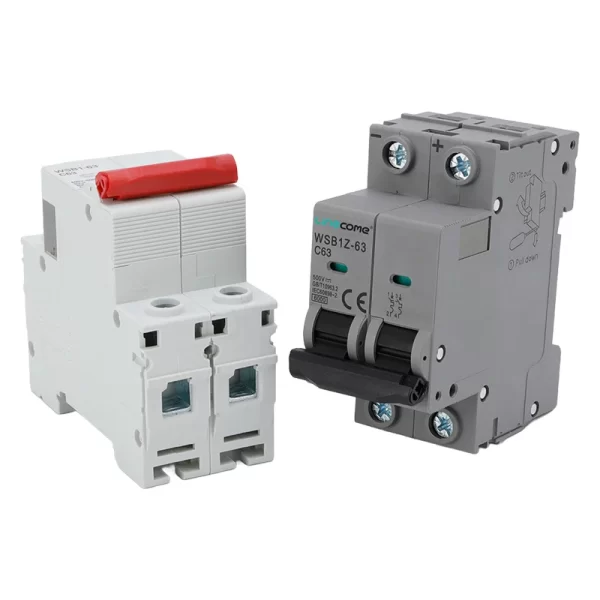

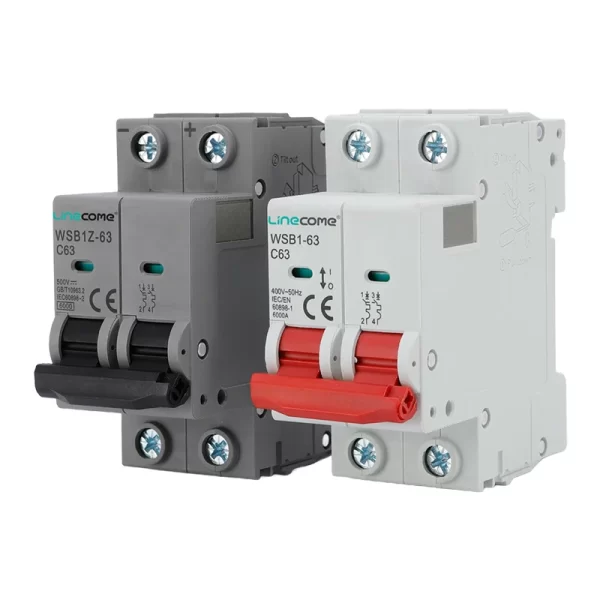

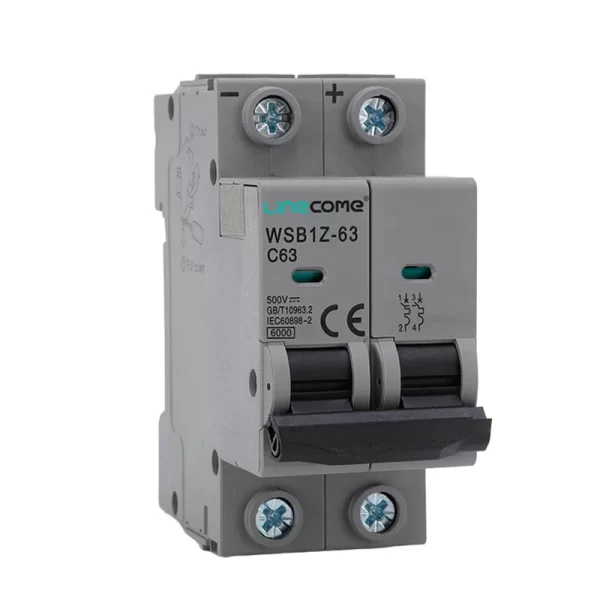

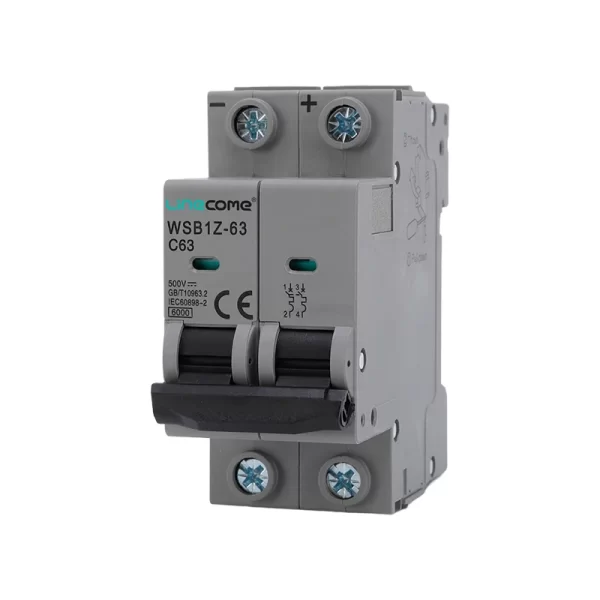

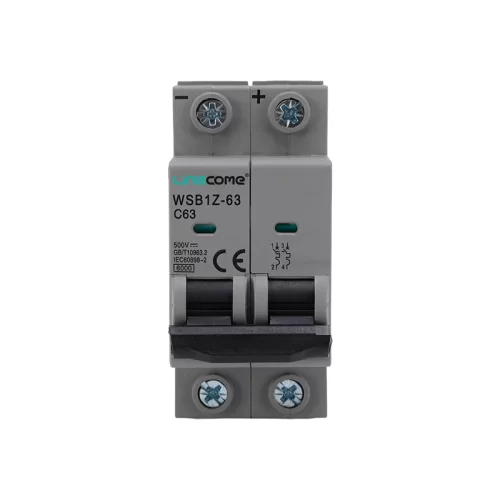

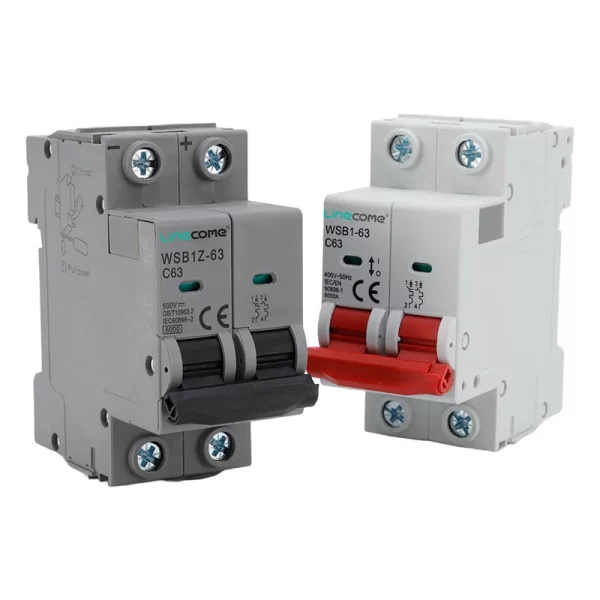

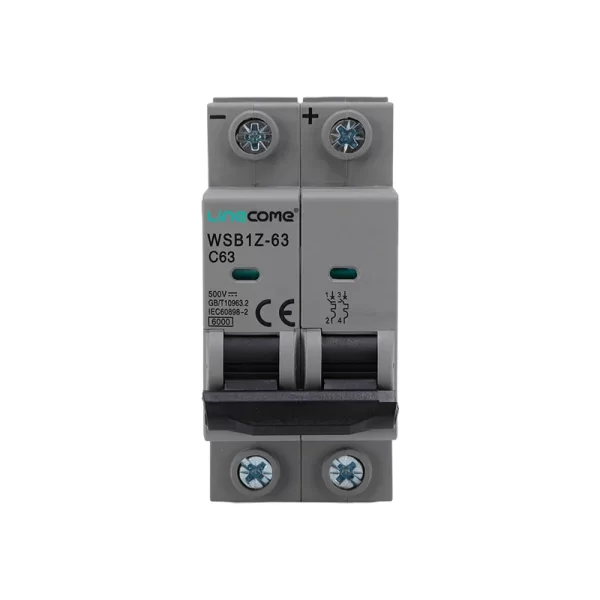

| Model |
WSB1Z-63(DC) |
| Compliant standards |
IEC60898-1 |
| Major function |
Overload protection, short circuit protection, changeover of infrequent operation |
| Technical parameters |
| Rated current |
6A,10A,16A,20A,25A,32A,40A,50A,63A |
| Rated voltage |
DC250V(1P);DC500V(2P);DC750V(3P);DC1000V(4P) |
| Number of poles |
1P,2P,3P,4P |
| Thermal release characteristic |
(1.13-1.45) xIn |
| Mechanical life |
20000 cycles |
| Electrical life |
4000 cycles |
| Rated short-circuit breaking capacity(lcn) |
6000A |
| Short-circuit breaking capacity(Ics) |
6000A |
| Rated impulse withstand voltage (Uimp) |
4kV |
